Concepts

AtomVoxelizer stores atom-centered information on a periodic 3D grid. The core object is VoxelGrid: it holds a simulation cell, a grid shape, and a NumPy array of voxel values. You can choose the grid by target real-space resolution or by explicit gpts.

How Sphere Painting Works

Most operations paint a sphere around each atom:

1. Convert an atom position to fractional coordinates and wrap it into the primary periodic cell.

2. Convert that position to a voxel index.

3. Reuse a cached list of integer voxel offsets inside the requested radius.

4. Add those offsets to the atom-center voxel and wrap by the grid shape.

5. Modify only the selected local voxels.

This avoids the expensive alternative of scanning every voxel against every atom. A direct distance scan is typically O(N_atoms * N_voxels). AtomVoxelizer instead loops over atoms and visits only the local stencil around each atom. For fixed radius and resolution, that stencil size is roughly constant, so sphere painting scales approximately as O(N_atoms).

Sphere Operations And Masks

The scalar grid API uses explicit operations:

set_sphere / set_spheres

Write values into a sphere.

add_sphere / add_spheres

Add values into a sphere. This is useful for shell-overlap or coordination masks.

mul_sphere / div_sphere

Multiply or divide selected voxels.

min_sphere / min_spheres

Keep the minimum of the existing grid value and the mask value. This is commonly used with mask="distance" to build nearest-atom distance fields.

Two scalar mask types are available:

constant

Every voxel in the sphere receives the supplied value or factor.

distance

Every voxel receives its real-space distance from the sphere center. The distance is in Angstrom when the cell is in Angstrom.

Grid Values And Dtypes

The default grid dtype is numpy.float32. Pass dtype=... when another numeric storage type is useful:

grid = VoxelGrid(cell, resolution=0.25, dtype=np.int16)

Integer dtypes are useful for count-like masks. Floating dtypes are appropriate for distance fields and analysis workflows. Complex dtypes support arithmetic sphere operations, but ordered operations such as min_sphere, clamp_grid, and value-range sampling are not defined for complex grids.

Backends

VoxelGrid is the default NumPy backend and is always available. VoxelGridNumPy is an alias for callers that want an explicit backend name.

VoxelGridNumba uses Numba-compiled loops for the hot sphere-painting operations. It is usually the fastest CPU backend for repeated sphere updates. Install Numba directly when you want this backend:

pip install numba

VoxelGridCuPy stores the grid on a CUDA device with CuPy. It can be useful for large GPU-resident workflows, but small atom-by-atom updates may be slower than CPU backends because of data movement and kernel-launch overhead. Install the CuPy package matching your CUDA runtime, for example:

pip install cupy-cuda12x

VoxelGridTaichi and VoxelGridTaichiGPU are experimental Taichi CPU/GPU backends. They are included for experimentation, but the current CPU Taichi backend is not expected to outperform NumPy or Numba for small sphere-update workloads:

pip install taichi

Run backend benchmarks with:

python benchmarks/benchmark_backends.py --workload zeolite --backends numpy numba taichi
python benchmarks/benchmark_backends.py --zeolite-scaling --framework BEA --resolution 0.5 --plot zeolite_scaling.png

Field Voxel Grids

FieldVoxelGrid stores scalar, vector, or matrix-valued data at each voxel. Its array shape is (*gpts, *value_shape). VectorVoxelGrid is a convenience alias for value_shape=(3,).

from atomvoxelizer import FieldVoxelGrid, VectorVoxelGrid

scalar = FieldVoxelGrid(cell, resolution=0.25, value_shape=())
vector = VectorVoxelGrid(cell, resolution=0.25)
matrix = FieldVoxelGrid(cell, resolution=0.25, value_shape=(3, 3))

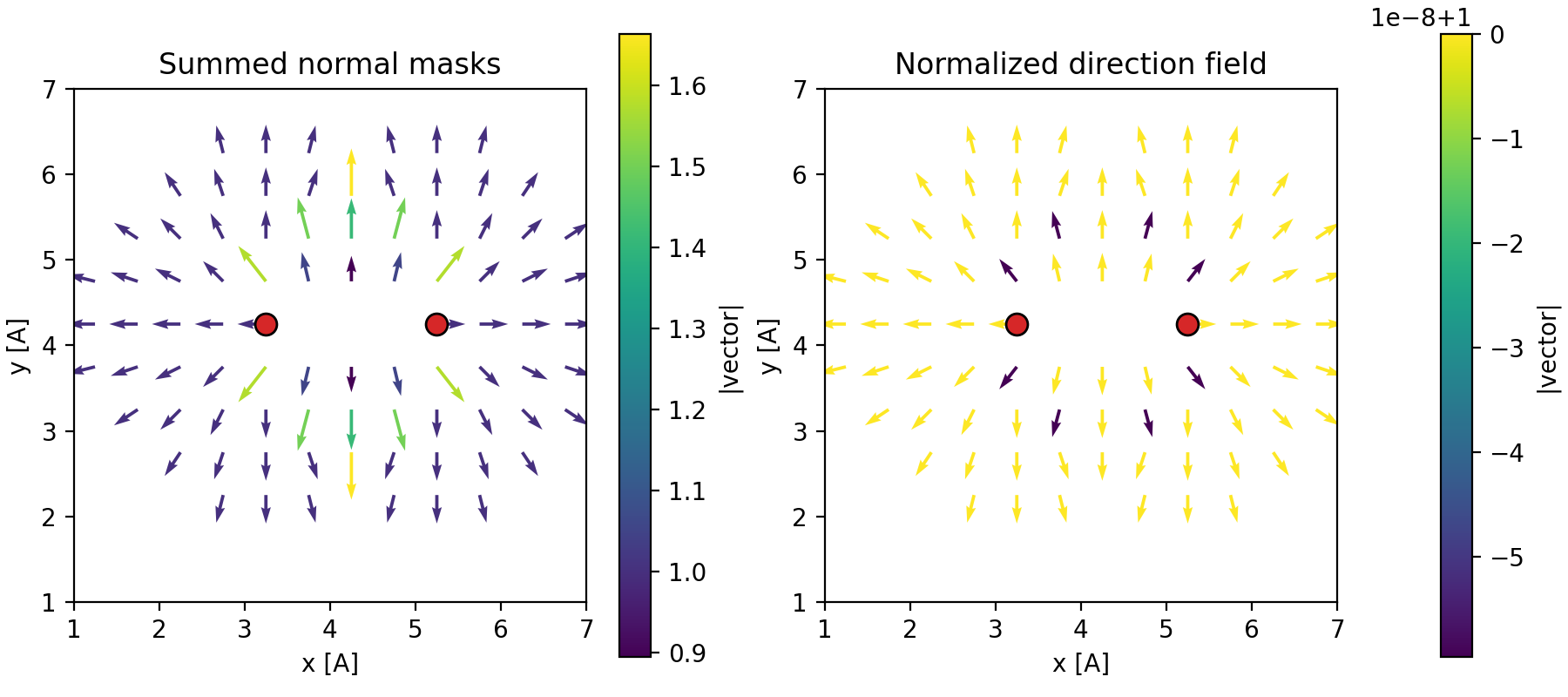

For vector fields, mask="normal" writes a unit vector pointing away from the atom-center voxel. Summing normal masks over atoms and then normalizing the nonzero vectors gives a local direction field near a surface:

grid = VectorVoxelGrid(cell, resolution=0.25)
grid.add_spheres(atom_positions, radii, mask="normal")
grid.normalize_vectors()

Vector fields can be inspected with Matplotlib:

grid.plot_quiver_slice(axis="z", index=grid.gpts[2] // 2, stride=2)
grid.plot_quiver_3D(stride=3, min_norm=0.1, length=0.5)

Periodic Surfaces

VoxelGridAnalysis.mesh_at_value traces scalar-field surfaces with marching cubes. For periodic grids, AtomVoxelizer tiles the field, keeps triangles associated with the central periodic image, and clips boundary-crossing triangles to the primary cell. Clipping avoids long triangles that would appear if vertices were simply wrapped back into the cell.

For binary masks, surface_area_voxel_faces counts selected/unselected voxel face boundaries directly. It is much faster for fine convergence scans, but it returns a grid-aligned surface estimate rather than a smoothed triangular mesh.

Dtype Benchmark Note

On an AMD EPYC 7551P CPU with Python 3.12.12 and NumPy 2.4.1, a small BEA zeolite dtype benchmark at --resolution 0.5 --repeats 2 showed little NumPy wall-time sensitivity to dtype. Memory use changed predictably with item size. Larger grids and memory-bound workloads may show stronger dtype effects.

Run the dtype benchmark with:

python benchmarks/benchmark_dtypes.py --backend numpy
python benchmarks/benchmark_dtypes.py --backend numba
